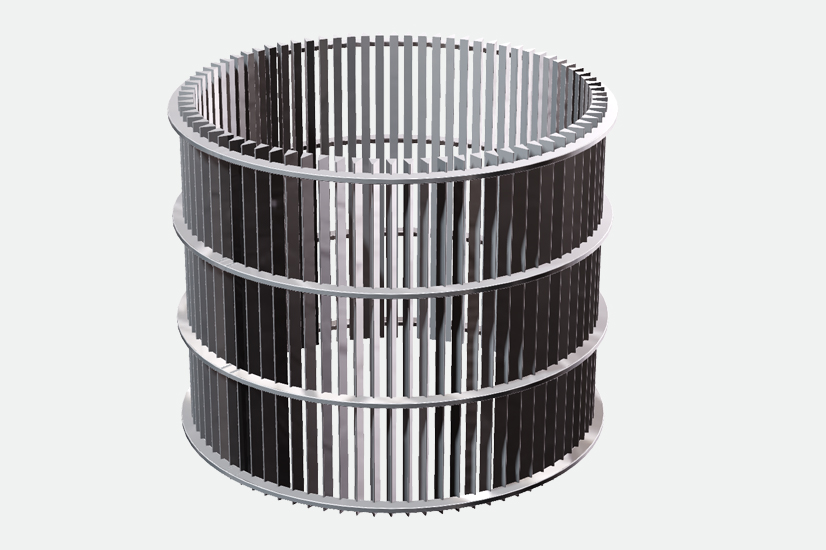

Axial slot cylinders

The VICO-Screen cylinders with axial slots are made from machine worked cylinders, subsequently flattened and re-rolled to obtain axial slots.
The unique aspect of these cylinders is that they have smooth external or internal filtering surfaces.
For these baskets it is essential to comply with strict cylindricity and roundness tolerances. Costacurta can guarantee this thanks to the precision and quality of its manufacturing processes.

Materials

Carbon steel, AISI 304, AISI 316L, AISI 321, AISI 321H, AISI 347, duplex, super duplex, Nickel-Chromium alloys

Supply

On request, VICO-Screen baskets can be supplied with support bars and other elements such as flanges or reinforcement rings in accordance with the client’s specifications and drawings.
On request, surface finishes can be applied such as degreasing, pickling and electropolishing.

Use

The shape of the basket makes it ideal in screw presses, screw separators or shredders and, more in general, in all those applications that require an inside to outside filtering flow such as, for example, the treatment of slurry (biogas industry and agriculture) and the food waste industry.
