VICO-Still

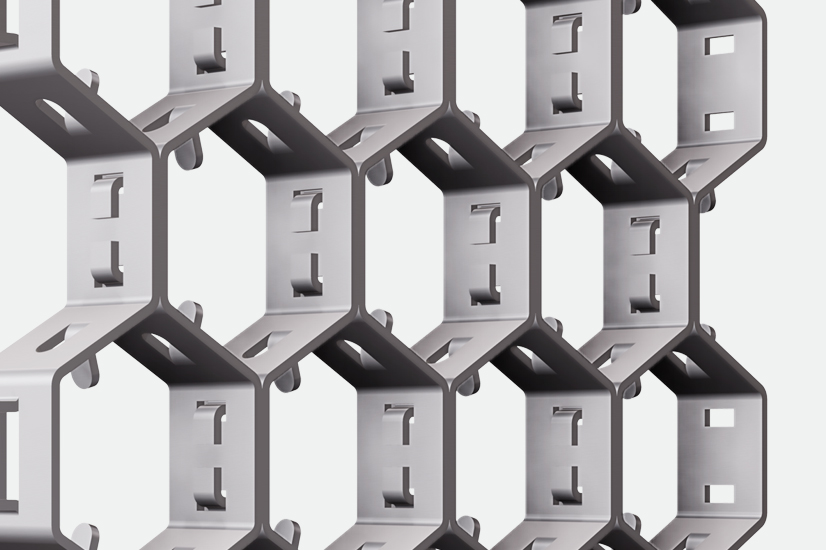

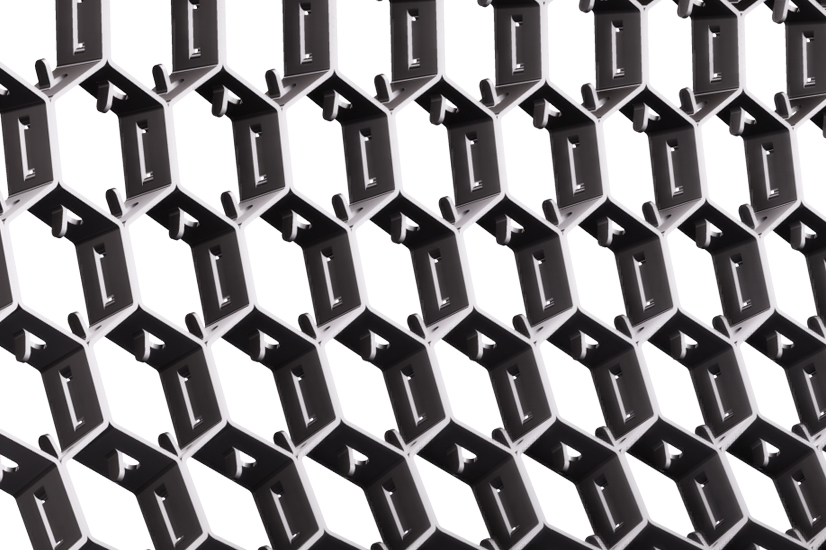

Costacurta’s hexagonal meshes are called VICO-Still. They are made of shaped metal flat bars joined together by a locking system that guarantees high rigidity even after the panel has been rolled.

Materials

AISI 304H, AISI 410S, AISI 310S and carbon steel.

Supply

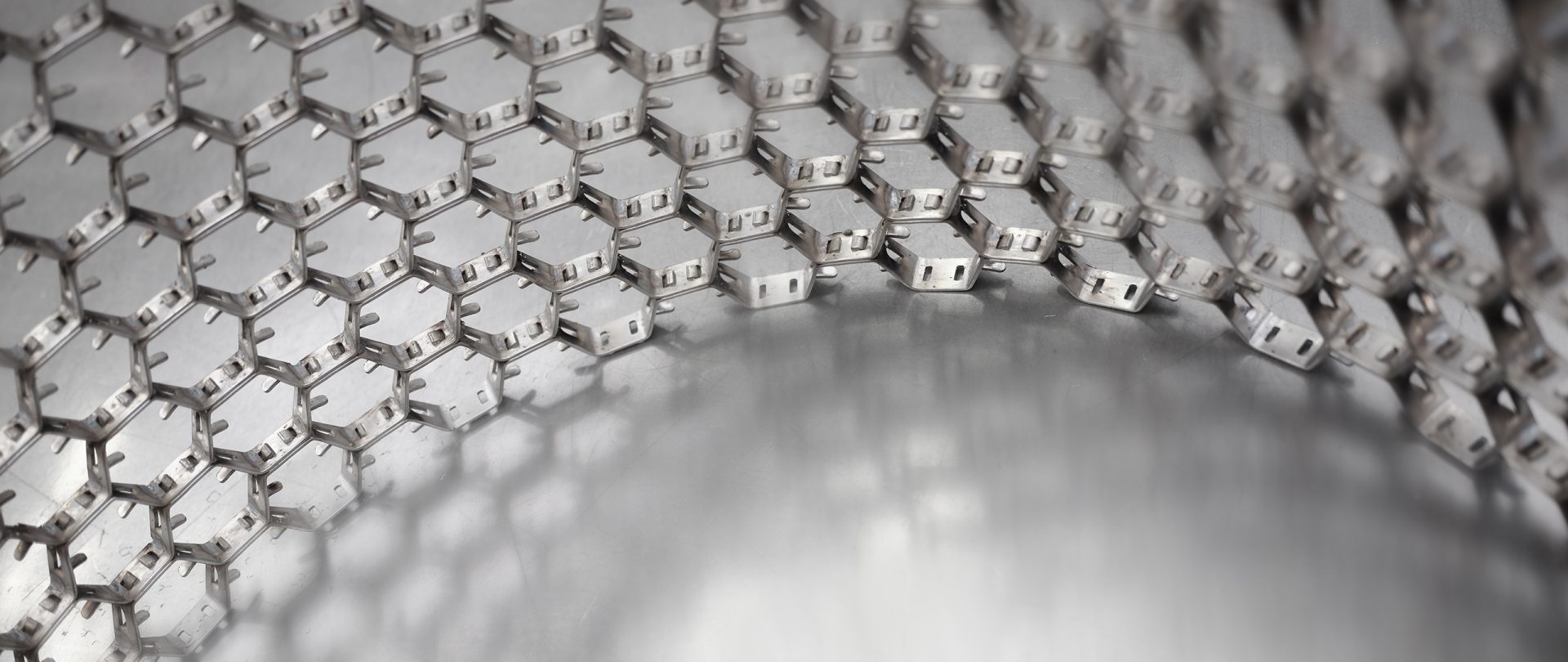

VICO-Still panels can be supplied either flat or cut to size and rolled in accordance with the installation drawings issued by the technical office. Flat rectangular panels measuring 2000×1000 mm are always available in stock. Standard panels are made from 19 or 25 mm thick plates, hexagonal cells with or without lances and central or staggered positioning of the lances.

Use

VICO-Still is used to armour and support the anti-abrasive and anti-corrosion refractory linings, applied to the walls of reactors, cyclones, furnaces and vessels.
