In the case of new plants, when designing a spiral tower, a meticulous assessment of the effects that the choice of the type of belt can have on the layout of the tower in some cases can significantly reduce the volume of the plant, guaranteeing the same production capacity, with a positive impact on the CAPEX and OPEX.
In the case of existing plants, when there is a malfunction caused by changes in the operating conditions, replacing the belt with one with greater maximum allowable tensions, Heavy Duty or Extra Heavy Duty belt, with the same width and turn radius, can solve the problems in some cases without having to adapt the plant or, in any case, making minimum changes to it.
OUR VICO-FLEX PRODUCT RANGE
Costacurta offers a very wide range of VICO-Flex conveyor belts that differ in pitch, thickness and height of the links, in pitch and diameter of the connecting rods and, therefore, in the maximum allowable tensions. Each type of VICO-Flex belt has a minimum turn radius but it can also be supplied with the same links tailored to allow optimal functioning with turn radii that are greater than the minimum.
Moreover, each belt is made in the width and with the spiral wire diameters and pitches requested by the customer.
The range of VICO-Flex conveyor belts:
Standard
-
Longitudinal pitch
19.05 mm (3/4″)
27.43 mm (1.08″)
-
Minimum turn radius
2.2 for pitch 3/4″
1.6 for pitch 1.08″
-
Maximum allowable tension
100 lbs (45 kg)
-
Belt width range
From 254.0 mm (10″) to 990.6 mm (39″)
-
Connecting rod ø
5.0 mm (0.197″)
-
Links size
11.20 x 2.00 mm² (0.440″ x 0.078″)
Heavy Duty
-
Longitudinal pitch
27.43 mm (1.08″)
-
Minimum turn radius
2.2 (1.68 in the H.D. reduced radius verison)
-
Maximum allowable tension
150 lbs (68 kg)
-
Belt width range
From 254.0 mm (10″) to 990.6 mm (39″)
-
Connecting rod ø
5.0 mm (0.197″)
-
Links size
12.70 x 2.65 mm² (0.500″ x 0.104″)
Extra Heavy Duty
-
Longitudinal pitch
31.75 mm (1.25″)
-
Minimum turn radius
1.73
-
Maximum allowable tension
300 lbs (136 kg) for belt width up to 1066.0 mm (42″)
-
Belt width range
From 457.2 mm (18″) to 1372.0 mm (54″)
-
Connecting rod ø
6.0 mm (0.236″)
-
Links size
15.00 x 3.00 mm² (0.590″ x 0.118″)
Extra Heavy Duty 1
-
Longitudinal pitch
40.00 mm (1.575″)
-
Minimum turn radius
1.6
-
Maximum allowable tension
450 lbs (200kg) for belt width up to 1016.0 mm (40″)
-
Belt width range
From 457.2 mm (18″) to 1524.0 mm (60″)
-
Connecting rod ø
7.0 mm (0.276″)
-
Links size
16.00 x 3.00 mm² (0.630″ x 0.118″)
Extra Heavy Duty 3
-
Longitudinal pitch
40.00 mm (1.575″)
-
Minimum turn radius
1.6
-
Maximum allowable tension
300 lbs (136 kg) for belt width up to 812.0 mm (32″)
-
Belt width range
From 457.2 mm (18″) to 1524.0 mm (60″)
-
Connecting rod ø
6.0 mm (0.236″)
-
Links size
16.00 x 3.00 mm² (0.630″ x 0.118″)

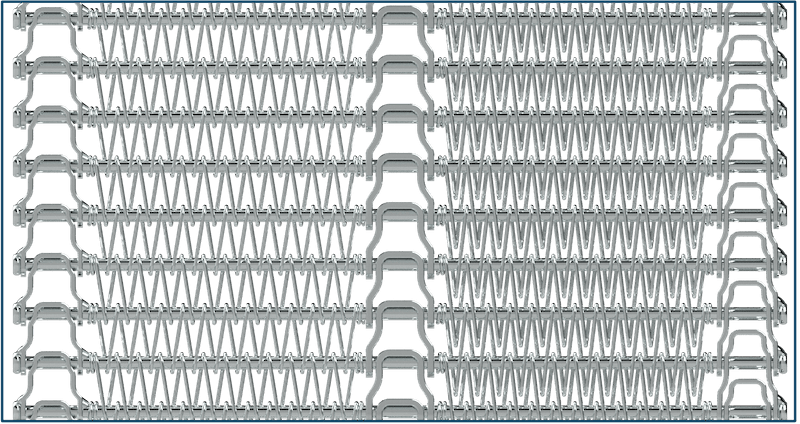

Small Radius
-
Longitudinal pitch
27.43 mm (1.08″) / 19.05 mm (3/4″)
31.75 mm (1.25″) / 27.43 mm (1.08″)
44.00 mm (1.732″) / 31.75 mm (1.25″)
-
Minimum turn radius
1.0
-
Maximum allowable tension
From 150 lbs (68 kg) to 300 lbs (136 kg)
-
Belt width range
From 406.4 mm (16″) to 1524.0 mm (60″)
-
Connecting rod ø
From 5.0 mm (0.197″) to 6.0 mm (0.236″)
-
Links size
From 11.20 x 2.00 mm² (0.440″ x 0.078″) to 15.00 x 2.65 mm² (0.590″ x 0.104″)
Heavy Duty and Extra Heavy Duty belts, with reduced turn radii and high maximum allowable tensions enable to increase the production efficiency of the tower, reducing its volume while guaranteeing the same production capacity, or increasing the quantity of product transported with the same spiral tower volume.
Costacurta’s experts are available to support spiral tower manufacturers and maintenance technicians in optimising the lay-out of new towers or in finding solutions to malfunctions in existing ones.
LOW TENSION SYSTEMS
The VICO-Flex belts presented on these pages have been designed for installation in low tension (‘lotension’) Spiral Towers. This technology has some unique characteristics:
- Proven and reliable: on the market for over 70 years; tens of thousands of installations throughout the world.
- Continuously improved: the continuous evolution over the years has significantly improved efficiency and reliability
- Flexible and efficient: also, thanks to the presence of a wide range of conveyor belts with reduced turn radii and high maximum allowable tensions that allow to achieve the best spiral tower performance for numerous types of products and operating conditions.
- Growing demand: Costacurta has produced over the years more than 1 million meters of VICO-Flex belts for low tension spiral towers, this year alone Costacurta will produce over 70,000 metres and plans to further expand its production capacity to meet growing demand.
DOWNLOAD THE PRESENTATION TO SEE OUR PRODUCTS AND SERVICES.
FIND OUT MORE ABOUT OUR VICO-FLEX FOR FREEZING PLANTS
